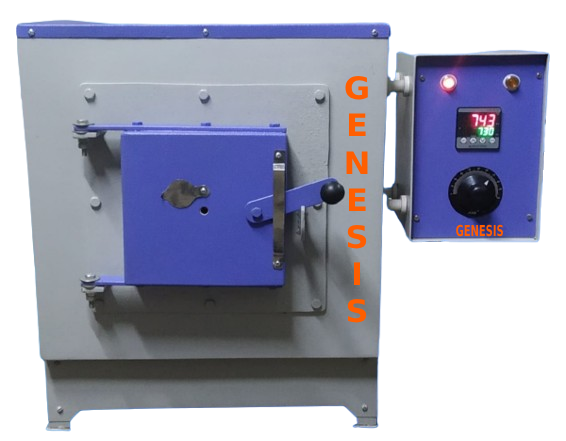

Muffle Furnace
GENESIS (GLSi®) Muffle Furnace / Laboratory Furnace classic lab series are specially designed to laboratory instrument used to heat materials to extremely high temperatures whilst isolating them from fuel and the byproducts of combustion from the heat source.
Standard Specifications.
Max Temperature 1000ºC. Operating Temperature 900ºC. Thermocouple K Type. Controller Microprocessor based PID controller. Heating Element Kanthal A-1. Display 7 Segment LED Dual Display. Outer Chamber Made of Mild Steel with powder coating. Insulation Suitable insulation. Electrical requirements 220 - 230 Volts, 50 Hz Single Phase. * Optional: Profile Controller, Data logger. One year standard warranty with CE certified
Standard Models.
| Model | Capacity Liters |
Internal Dimension W/D/H |
Heater |
|---|---|---|---|
| #54009DM | 2.0 | 4 x 4 x 9 inch | 2.2 kW |
| #54010DM | 4.0 | 5 x 5 x 10 inch | 3.5 kW |
| #54012DM | 7.0 | 6 x 6 x 12 inch | 4.5 kW |
| #54014DM | 11.0 | 7 x 7 x 14 inch | 5.5 kW |
Content may be subject to modifications or corrections.
